Conference Microphone LCD Monitor Lift with 18.5 Inch Ultra-thin Screen for Audio System
Introduction:
LCD monitor lift, a modern conference audio-visual system furniture accessories, an important part of paperless conference furniture. It designed for the high-class office conference room audio-visual solutions. The LCD monitor screen can hidden under the conference table and keep the table surface cleanly.
Slim LCD monitor lift with screen is the more advanced conference audio-visual system, it consists of a lifting up mechanism and an ultra-thin LED monitor screen. Besides, the lifter also have the manually adjustable function, can pitching the view screen angle in need. The microphone type equipped with a speaking system. User can speaking via the conference microphone.
Feature:
1, Supply with 8.8mm 18.5 inch ultra-thin full aluminum metal shell screen.
2, Solid mechanized aluminum brushed hosing in anodized finishing.Upper cover plate in brushed aluminum alloy.
3, 12V step motor with simultaneous drive with loading LCD monitor screen.
4, Electric powered lift system with variable speed, Vertically silent Operation.
5, High-quality anodized aluminum alloy drawing panel, supply with silver and black color selection.
6, Desk LCD monitor lift provides protecting function of HD screen monitor by cutting electricity off automatically if reach the monitor lift bottom and powering screen on if reach the top.

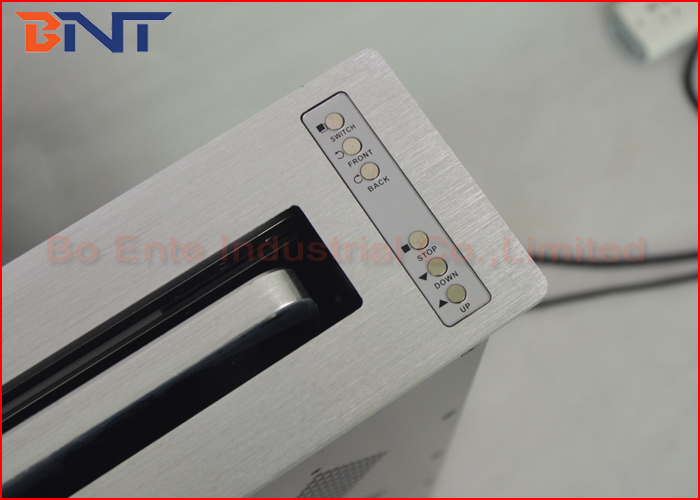

7, Touch controller panel button, can control the lift screen up and down easily.
8, Supplied with disucssion microphone which is available for digital camera trcuking.
9, Automatically retroflexion angle from 15 to 45 degree, supply with manually pitch angle adjustment.
Customized Option:
| 1 | Touch Screen (15.6/17.3/18.5) |
| 2 | Customized cover plate with microphone |
| 3 | Customized cover plate with USB connector |
| 4 | Customized cover plate with Computer Switch |
| 5 | HDMI cable with input for underneath installation |
| 6 | Housing& cover plate could be anodized in different color |
| 7 | Customized cover plate with lifting up microphone mechanism |
| 8 | All-in-one Computer touch screen |
Application:
LCD Monitor Lift with HD screen all in one system is widely used on conference system, like video conference system, TV conference system, financial analyzing system, advanced office system, lecture and training room with conference table.
Detail Parameter:
| BET | Model No. | BLL-M18.5 |
| Materail | Panel | aluminum brushed Finish |
| Frame | aluminum brushed Finshing |
| Monitor Shell | aluminum brushed |
| surface | Plastic |
| Dimension | Panel | 550*73*4 mm |
| Panel with MIC | 550*73*4 mm |
| Inner panel | 470*30mm |
| Box | 530*70*600mm |
| Monitor frame thickness | 8.8mm |
| Information | Pitch Angle | 15° / 25° / 35° / 45° |
| Switch | UP / STOP / DOWN / FRONT / BACK |
| Selection | Color | Aluminum silver |
| Switch | computer /central control / panel control |

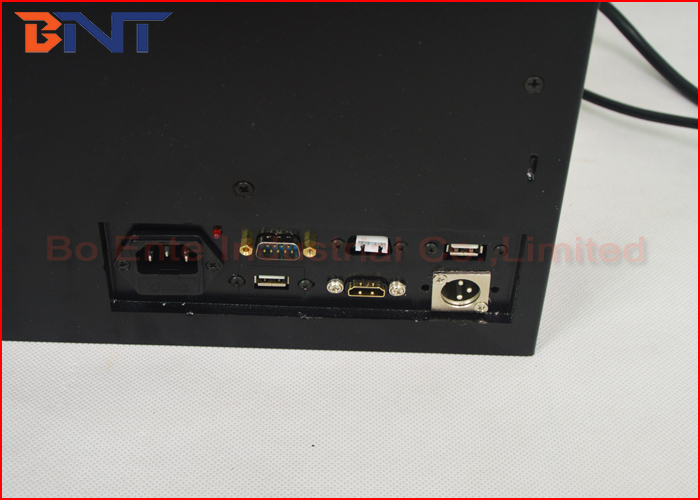

| Panel Input | USB / HDMI / RS232 |
| Monitor | Size | 18.5 LED screen |
| Brand | Samsung |
| Format | 16: 9 |
| Resolution | 1920*1080 |
| Viewing Area | 408.2*229.6mm |

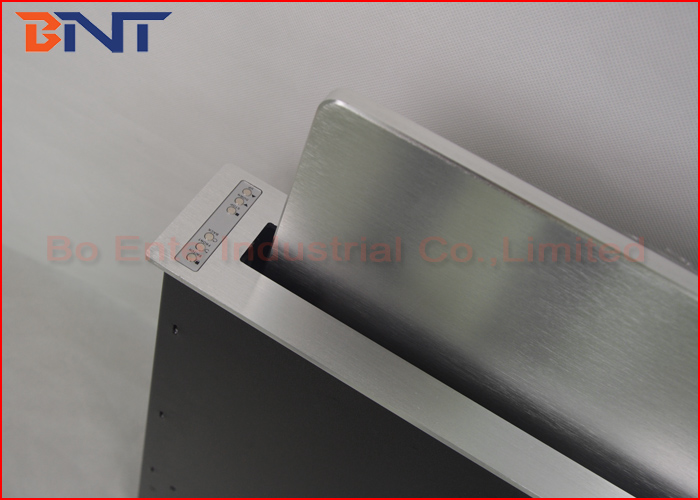

Product Pictures:
