Power Supply Office Desktop Power Plug Socket with Audio Video Connector Square Corner
Introduction:
Desktop power plug is a hidden equipment with media socket for all office furniture, it is special for audio video solution. Made with excellent zinc alloy material panel, available with silver, black matte, gold, white, wood color to meet different requires. Contain all media configuration, like power, network, telephone, HDMI, VGA, USB, 3.5Audio, Video, RCA, audio video, XRL, DVI. Before installed into the table, need to weld the power and other media cables. Easy to install on table. Just cut a hole on the table, but put our product into table, fix it by screws.
User could use the media configuration by press the product button, the media socket would be pop up to the topside automatically. After use, just press the product cover into table by hand. Widely used in office furniture for audio video solution in conference system.
Feature:
1, Made of 7mm thickness zinc alloy material, Anode oxidation process on panel to make high Brightness. Case bottom adop excellet steel material with black powdering.
2, Included media socket configuration, each configuration could be changed as required.
3, Various version of power plug could be changed as required, like US/UK/EU/South Africa standard power
4, Desktop power plug connected with 30cm length media cables with female connectors. So user no need weld the power plug and other media cables again. Just plug the female connector with extension cable as you need. What is more, there are fuse inside the socket box to keep all media connector is safe from big current.
5, Adopt spring inside the bottom case, could pop all media socket up accordingly by button. The shape corner and button is round (oval) or square for selection.
6, Convenient installation into office desk or meeting table. Hidden socket into table underside to keep desktop surface more neat, modern and save more space.
7, Socket hidden into the table. Press the button, all media socket will be pop up to the desktop socket if would like to use. Press the cover to be down if finished using.
8, Quality approvedy by CE/UL/SASO.
Parameter:
| Product name | Desktop power plug |
| Model number | BD630-4 |
| Material | Zinc alloy |
| Panel Dimension | 265*130mm |
| Case Dimension | 222*109*65mm |
| Cutout Dimension | 224*110mm |
| ShapeCorner | Square corner |
| Product Button | Square |
| Color | Silver color |
| Configuration | 1* Universal Power, 2*RJ45, 1*VGA, 1*3.5 Audio, 1*RCA |
| Connteed cables | Power cable, network cable, VGA cable, Audio cable, RCA cable |
| Cable Length | 30cm |
| Usage | Desktop socket |
| Certification | UL/CE/ROSH/SASO |
Product Pictures:
|
|

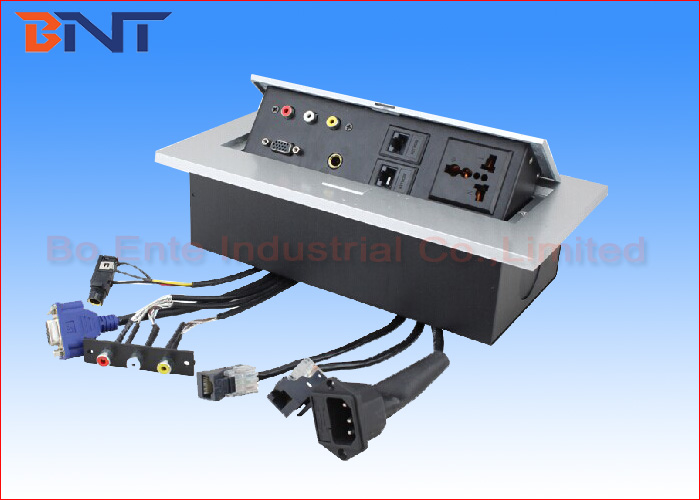

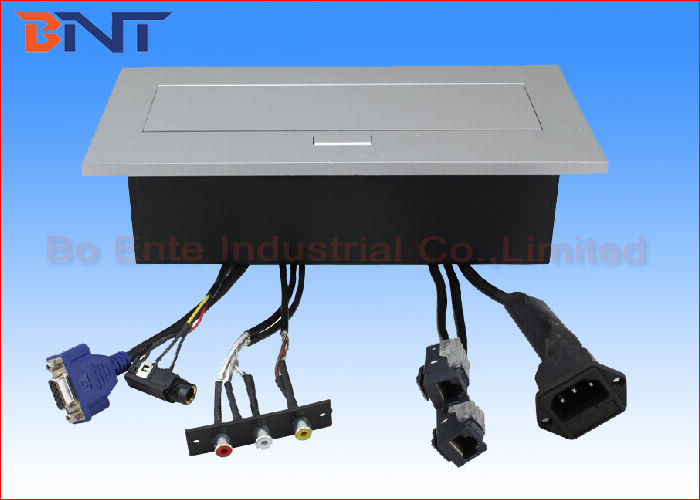

Power Supply Office Desk Power Sockets Square Corner With Audio Video Connector Images
|
